| Over 100 Years Of Combined Horse Involvement and Construction and Equine Construction Experience |
Any Style, Any Size, From Opulent To Practical, We Build Anything and Everything Equestrian.

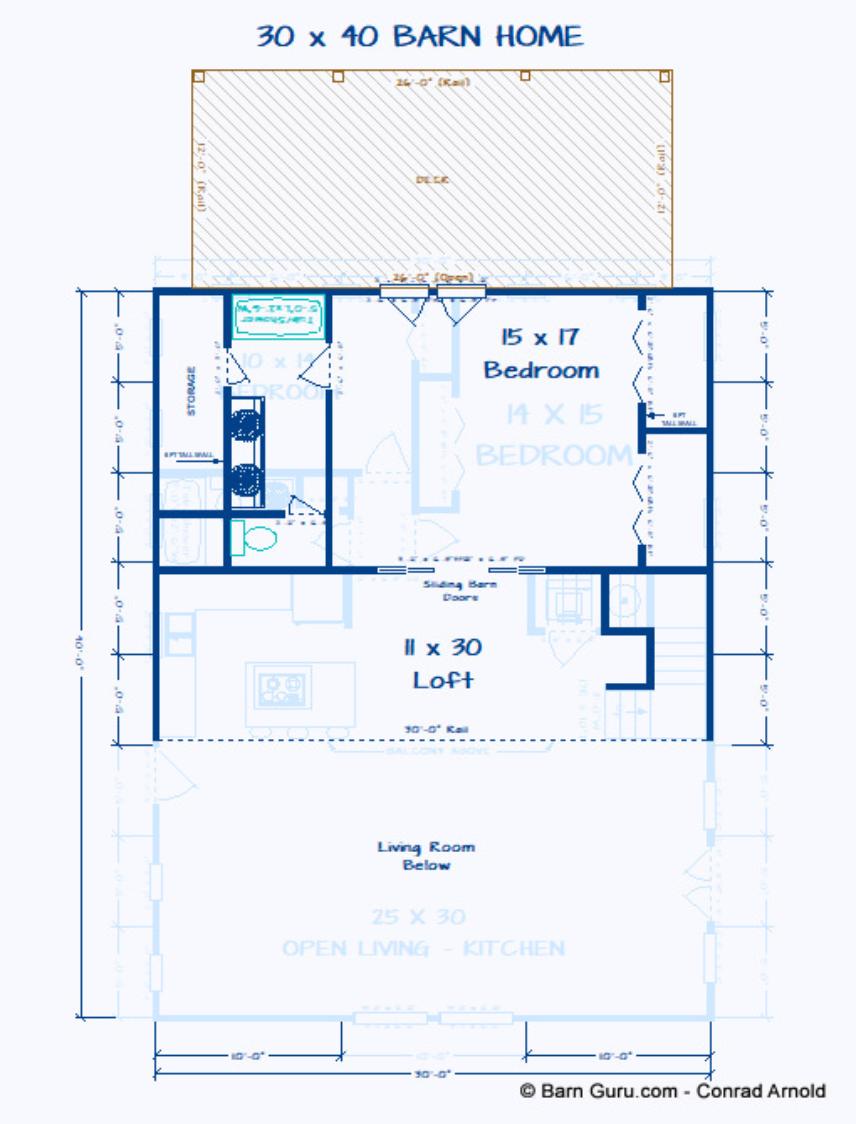

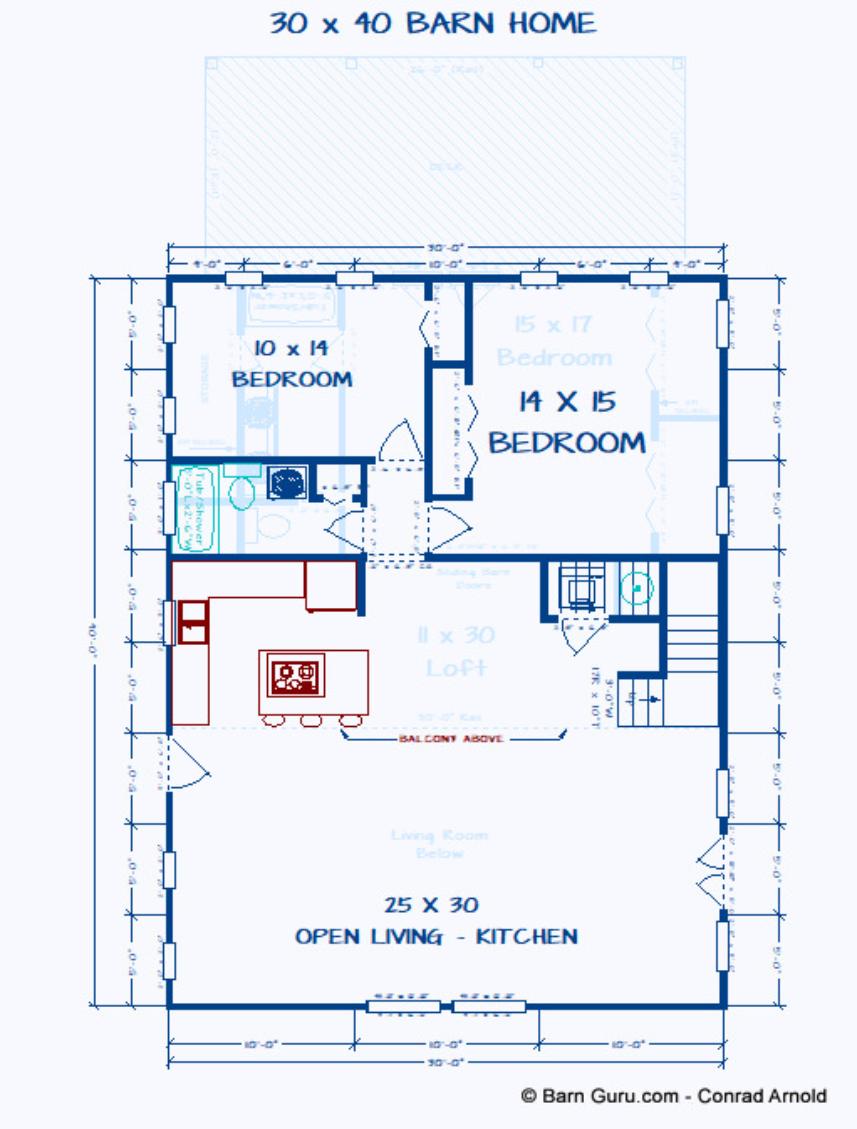

| Passive Solar Barn Style Home |
| 12 / 12 Roof Pitch |
| 2 x 6 T&G Ceiling and Floor Decking |
| 2 x 6 T&G Ceiling and Floor Decking |
| R-46 Ceiling Insulation - 6" of Rigid Polyiso Above The Roof Decking |
| Buy The Basic Plans. Floor Plan, Footing layout, Footing Details and Elevations for $500.00. If you are planning to build the barn yourself or if your builder is unfamiliar with horse barn construction you may need framing details and a materials list . Most experienced builders would only need the above floor plan and elevations and could give you several framing option. Our framing details would be the way we would frame the barn using 6" x 6" post with double rafters that sandwich post 5' o.c., with 2" x 6" T&G FOR the ceiling witch is also the roof decking. Above the 2" x 6" T&G roof decking/ ceiling is up to 6" of polyiso rigid foam insulation with the metal roof above the insulation. Or you can choose typical roof framing with rafters 16" o.c. Either framing techniques will show detailed site built king trusses 10' o.c. You can always order the framing details and a material list later if you need them. Add $400.00 for framing details if you need them. Add $300.00 if you need a material list with Georgia material pricing. Add $200.00 to Modify the plan |
| Buy The Plans |
