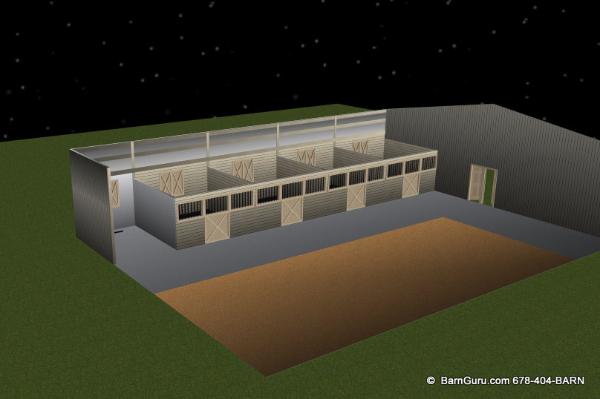

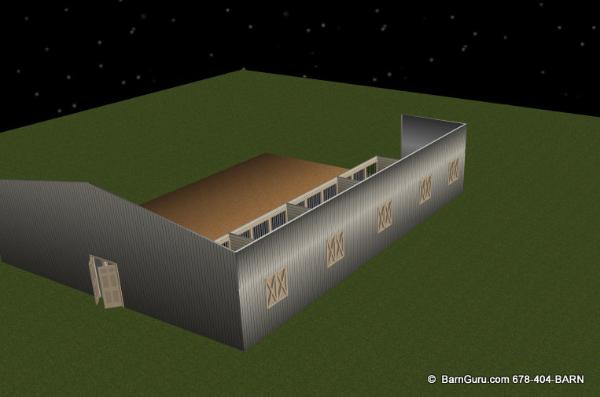

4 Stall Build Out
|
Quantity
|
Unit
|
Cost Per
|
Price
|
|
Wall T1-11
|
|
|
|
|
|
14' x 81' Wall
|
1134
|
SF
|
$4.85
|
$5,500.00
|
|
Paint Exterior Wall 14' x 81'
|
1134
|
SF
|
$1.20
|
$1,360.00
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
Stalls
|
|
|
|
|
|
T&G Yellow Pine
|
1260
|
SF
|
$3.57
|
$4,500.00
|
|
Seal T&G with Thompsom's water
Sealer
|
|
|
|
$800.00
|
|

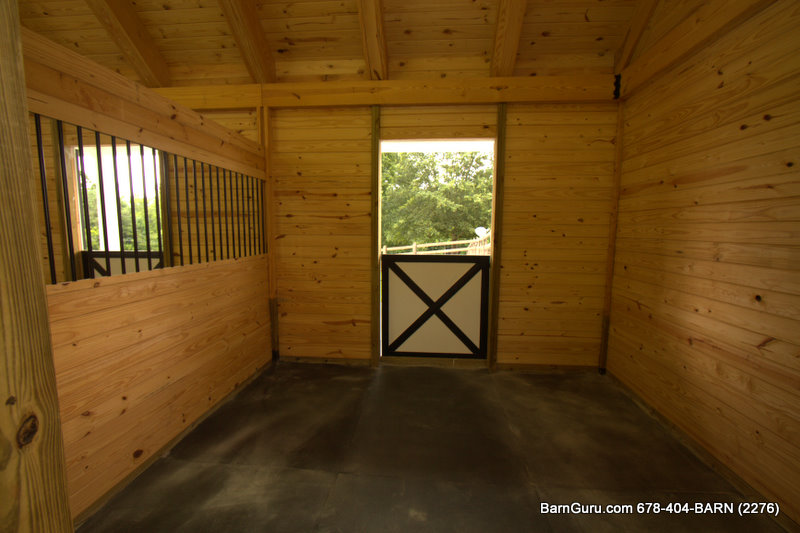

Stall Bars
|
984
|
inch
|
$1.82
|
$1,800.00
|
|

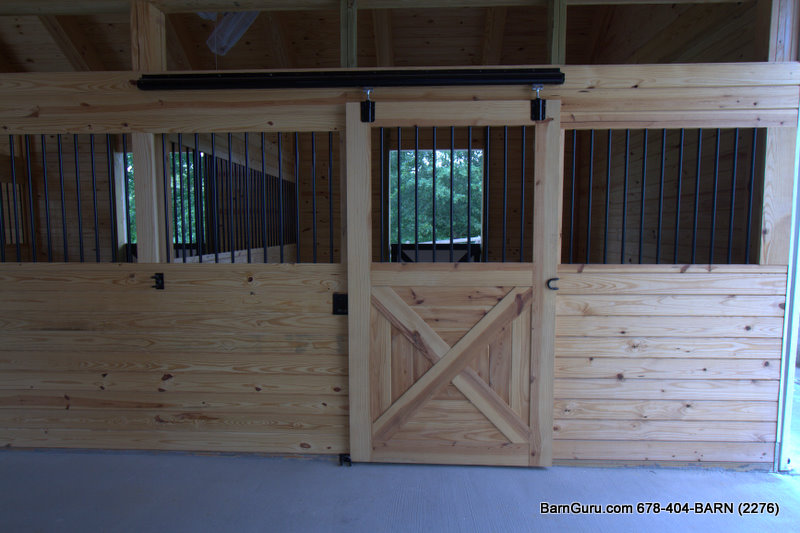

Stall Sliding Doors
|
4
|
Each
|
$650.00
|
$2,600.00
|
|
Saloon Exterior Windows
|
4
|
|
$250.00
|
$1,000.00
|
|
Chew Metal
|
4
|
Stall
|
On all exposed corners
|
$600.00
|
|

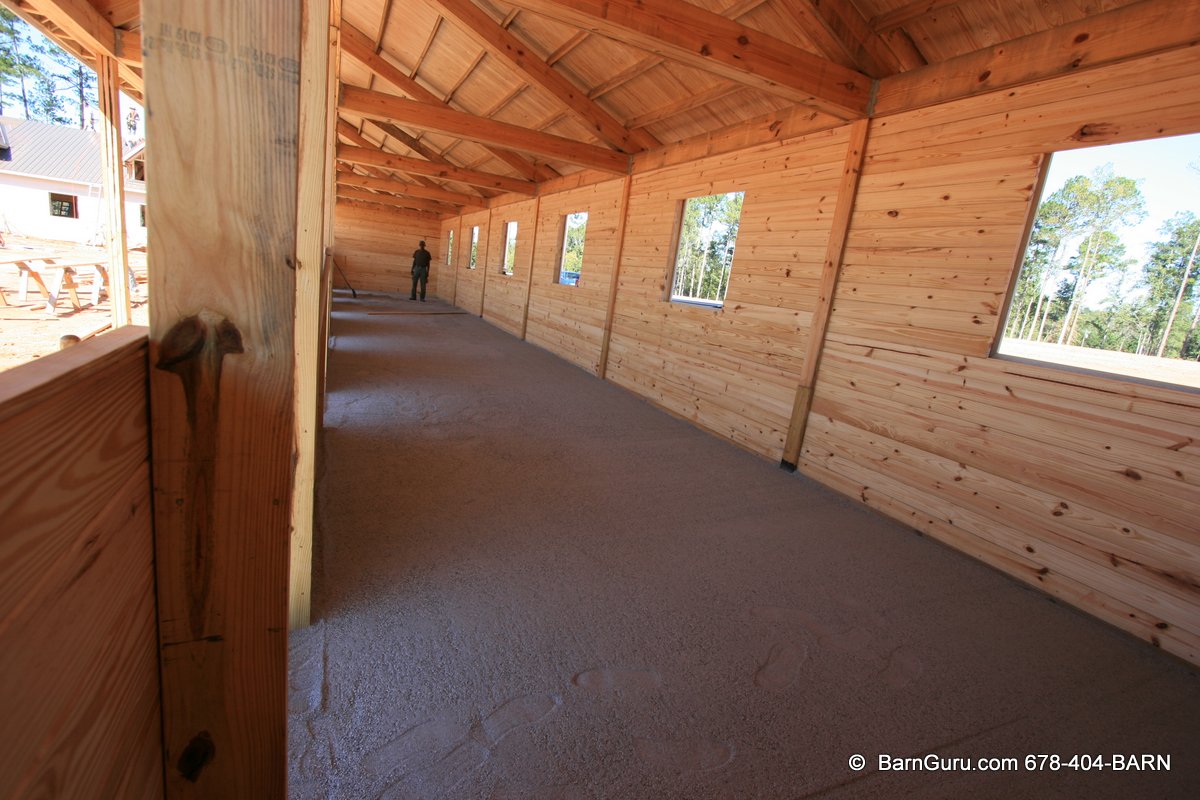

Rock Dust
|
4
|
Stall
|
|
$900.00
|
|

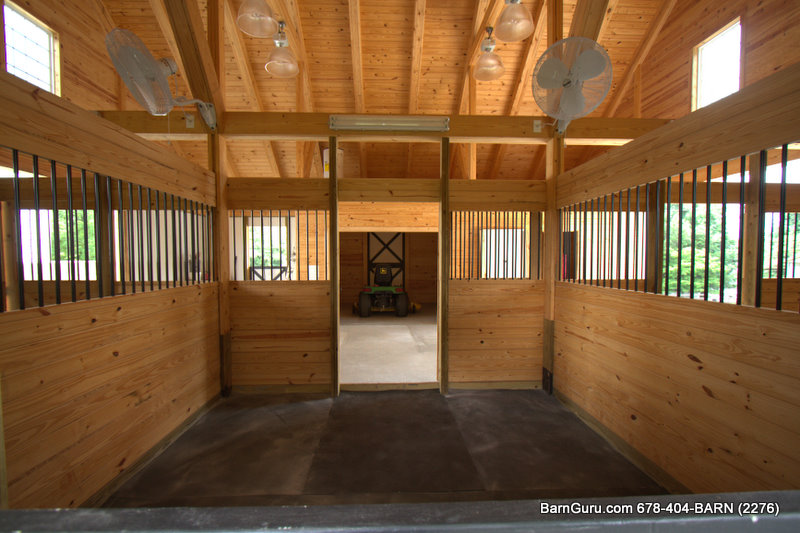

Fans
|
4
|
Each
|
$250.00
|
$1,000.00
|
|

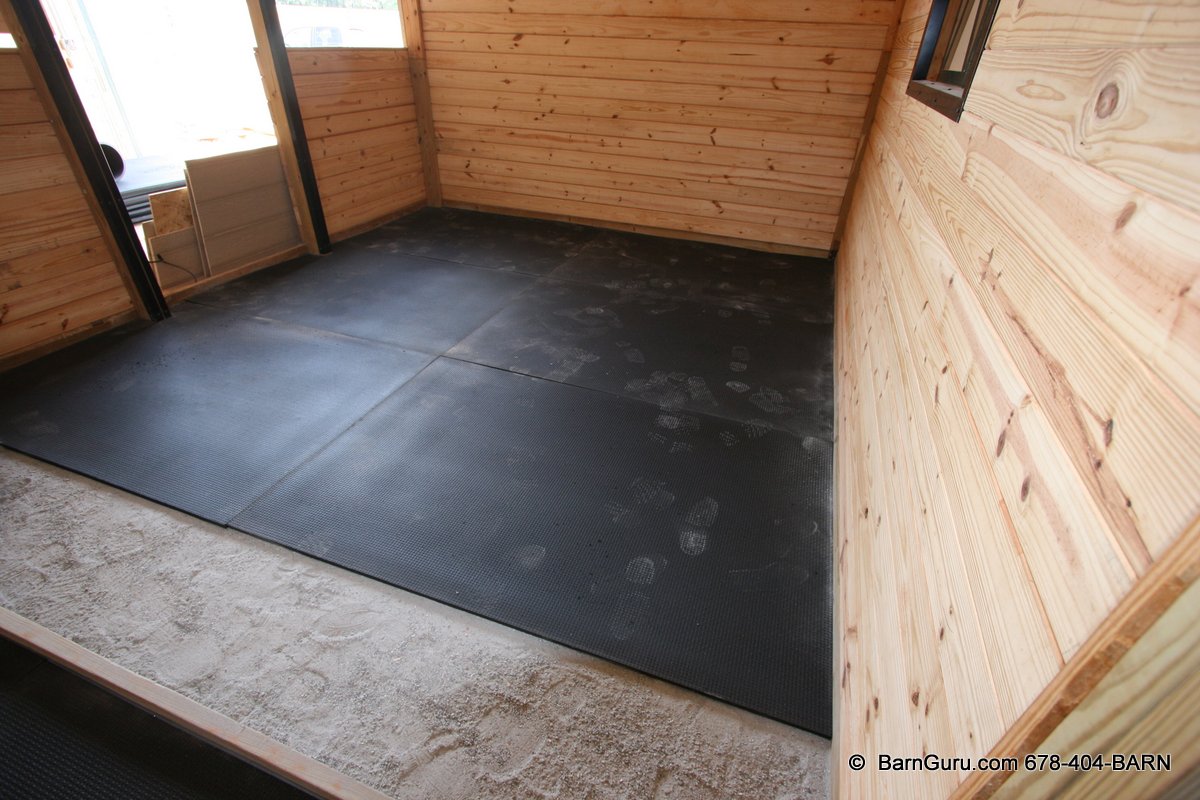

Mats
|
4
|
Stall
|
$450.00
|
$1,800.00
|
|
Swing out feeders (Hay)
|
4
|
Stall
|
$300.00
|
$1,200.00
|
|

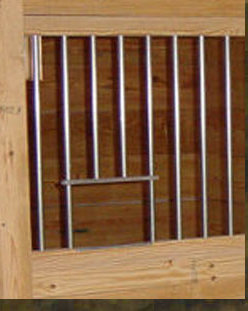

Simple feeders (Grain)
|
4
|
|
$75.00
|
$300.00
|
|
| |
|
|
|
|
|
Wash Area
|
|
|
|
$1,400.00
|
|
| |
|
|
|
|
|
* Electrical
|
|
|
|
|
|
Three 8' lights over aisle
|
3
|
|
|
$400.00
|
|
Switchable lights in Stalls
|
4
|
|
|
$700.00
|
|
Switchable outlet in stalls for fans
|
4
|
|
|
400.00
|
|
Switchable lights in Wash
|
1
|
|
|
$200.00
|
|
Misc Outlet
|
1
|
|
|
$50.00
|
|
* Assuming that there is room on the
Panel
|
|
|
|
|
|
| |
|
|
|
|
|
Plumbing
|
|
|
|
|
|
Water Heater
|
1
|
|
|
$600.00
|
|
Water line to building
|
|
Each
|
|
$600.00
|
|
Water line to wash
|
|
|
Hot and cold
|
$400.00
|
|
Water to each stall
|
4
|
|
Valve on the of outside of
each stall
|
$300.00
|
|
One frost proof hydrant
|
|
|
|
$200.00
|
|
| |
|
|
|
|
|
Concrete
|
|
|
|
|
|
12 x 67 Aisle
|
804
|
SF
|
$4.25
|
$3,417.00
|
|
12 x 24 Walk way
|
288
|
SF
|
$4.25
|
$1,224.00
|
|
10 x 14 Wash
|
140
|
SF
|
$4.25
|
$595.00
|
|
| |
|
|
|
|
|
Areas that you could save on
|
|
|
|
Savings
|
|
You could use 2 x 10 instead of 2
x 6 t&g for the stalls &
|
225
|
|
|
$1,500.00
|
|
Make the stalls 12 x 14
|
|
|
|
$700.00
|
|
Crusher run instead of concrete
|
|
|
|
$2.800.00
|
|
Water seal exterior wall
|
|
|
|
$600.00
|
|
|
