Arena

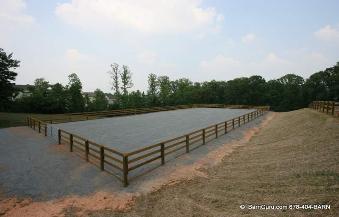

Proposal to build a high quality 70 x 200 Dressage Arena.
Install 300 Ft Of Silt Fence.
Strip 18" of top soil and pile.
Add 100 ft of 12" pipe and create a basin so that storm water will exit through the two existing
driveway pipes.
Bring compact able clay dirt from the hill to build a pad for the arena.

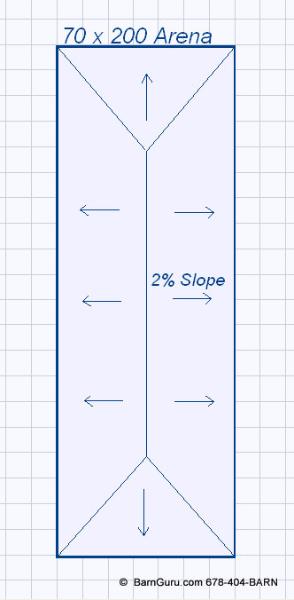

Pad will slope 2% on four sides; See diagram above. A 2% slope is = to 1/4 in slope every 12".
Compact clay dirt to 90% or better.
Add non woven fabric as a membrane to separate the base dirt from the footing material.
Owner will determine exact footing material.
Most of the top soil will be placed back on the hill and graded for a usable yard or future
paddock.
Install 300 Ft Of Silt Fence.
Strip 18" of top soil and pile.
Add 100 ft of 12" pipe and create a basin so that storm water will exit through the two existing
driveway pipes.
Bring compact able clay dirt from the hill to build a pad for the arena.
Pad will slope 2% on four sides; See diagram above. A 2% slope is = to 1/4 in slope every 12".
Compact clay dirt to 90% or better.
Add non woven fabric as a membrane to separate the base dirt from the footing material.
Owner will determine exact footing material.
Most of the top soil will be placed back on the hill and graded for a usable yard or future
paddock.
Recommended Footing Options and Arena Prices.
70 x 200 = 14000 SF
70 x 200 = 14000 SF
|
Rock Dust mixed
with River Sand
with River Sand
6 in of Rock Dust
Recommended Fencing Options and Fence prices.
|
|
Arena Fencing prices.
Welded Wire - Property Fencing With Top Board Prices.
|
Woven Wire - Property Fencing With Top
Board Prices.
Board Prices.
Woven Wire - V Mesh - Property Fencing With Top Board Prices.
|
Copyright © Equine Barn LLC All Rights Reserved
Note: Any clearing of brush or tree removal would be extra.

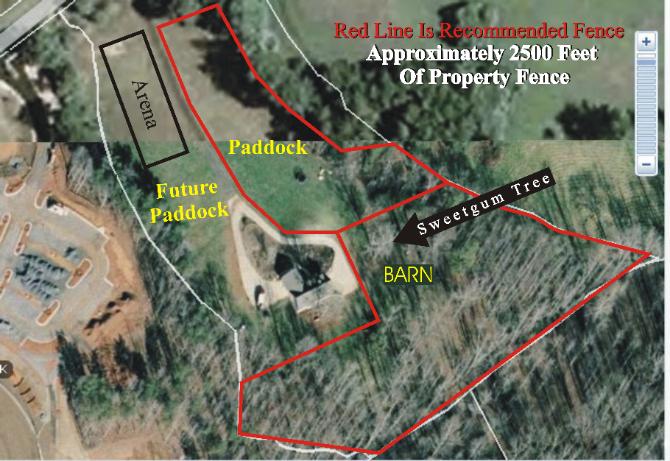

The only place that I see would require brush and tree removal would be if you ran
fence along the property line next to the ball field.
I believe I saw 4 board fence running along the rear of the property; reducing the
amount of fence that you would need.
The only place that I see would require brush and tree removal would be if you ran
fence along the property line next to the ball field.
I believe I saw 4 board fence running along the rear of the property; reducing the
amount of fence that you would need.
Note: If the footing is compacting more than you desire;
You can always add rubber to make the footing looser.
Click this link for more info.
You can always add rubber to make the footing looser.
Click this link for more info.
